ROLLRING Traverse Unit

ROLLRING Traverse Unit
ROLLRING Traverse Unit
Product Code : 20
Product Description

Electronic Traverse Unit

Traverse Units are positive drives that converts constant speed rotation of a shaft into a variable speed, variable stroke and reciprocating motion without changing the direction of a shaft rotation. This is a unique technique of converting rotary motion into a linear reciprocating motion based on the Principle of Contact Pressure that is created between a properly dimensioned ring and a shaft assembly enabling a transmission of significant force. The rate of advance of unit on the shaft is directly proportional to an angle of contact between ring and shaft. Being one of the pioneering Manufacturer and Exporter of Traverse Units, Linear Drives, Spooling and Layer Winding, the traverse direction reverses automatically as well as instantaneously. The assembly performs a similar lead screw that has an added advantage of a fine variable pitch and an infinitely variable setting of traverse length.....

Technical Specifications

Model

Shaft Dia
mm.

Max Side
Thrust FRR Kg

Max Pitch
H mm

Max Shaft
Rpm

Nunber of
Rolling Rings

HT 1

10

5

4

2000

3

HT 2

15

9

9

2000

3

HT 3

20

14

17

1500

3

HT 22

22

14

17

1500

3

HT 3 N

30

21

28

1000

3

HT 4

40

38

30

750

3

HT 5

50

58

36

500

3

HT 6

60

100

50

350

3

HT 8

80

150

68

300

3

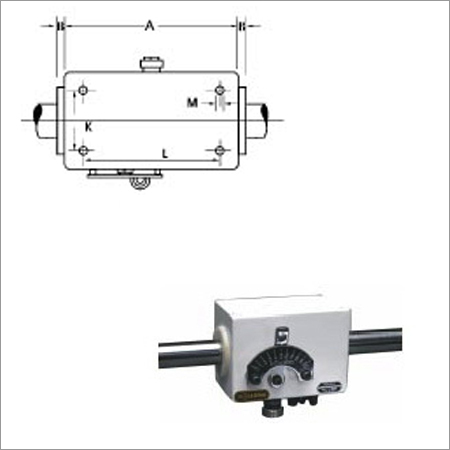

Sl.
No.

Model

Weight
(Kg)

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

W

L1

Max Shaft
Lenth L
Between brackets

1

HT1

0.48

79

3

54.5

10

15.0

42

11

7.5

36

12

28

40

M4

5

5

16

38.0

16

---

12

100

350

2

HT2

1.30

94

3

62.0

15

18.0

56

14

18

42.5

20

32

36

M5

6

6

19

44.5

19

---

12

120

600

3

4RR15

1.45

115

3

63.0

15

18.0

56

14

18

42.5

20

32

36

M5

6

6

19

45.0

19

---

12

140

600

4

HT 3

2.50

120

3

87.0

20

22.5

70

18

18.5

52.0

32

40

70

M6

10

7

22

58.0

22

18

16

160

1000

5

4 RR 20

3.00

149

3

87.0

20

22.5

71

18

18.5

52.0

32

40

70

M6

10

7

22

58.0

22

---

16

190

1000

6

HT 22

2.50

120

3

87.0

22

22.5

70

18

18.5

52.0

32

40

70

M6

10

7

22

58.0

22

18

16

160

1200

7

4 RR 22

3.00

149

3

87.0

22

22.5

71

18

18.5

52.0

32

40

70

M6

10

7

22

58.0

22

---

16

190

1200

8

HT 3N

3.90

143

5

104.0

30

24.0

87

20

18.5

65.0

40

50

80

M6

12

8

26

69.5

26

18

20

210

2000

9

4 RR 30

4.95

174

5

106.0

30

24.0

88

20

18.5

67.0

40

50

80

M6

12

8

26

71.5

30

---

20

240

2000

10

HT 4

8.60

198

5

138.0

40

26.5

110

23

19.0

87.0

50

50

133

M12

14

10

32

93.5

32

20

25

275

2500

11

4 RR 40

9.40

205

5

138.0

40

26.5

112

23

19.0

90.0

50

50

133

M12

14

10

32

94.5

37

---

25

275

2500

12

HT 5

12.00

232

5

158.0

50

30.0

130

23

29.0

86.0

65

90

160

M12

16

10

32

105.5

32

25

25

325

2700

13

4 RR 50

14.15

232

5

158.0

50

30.0

130

23

29.0

88.5

65

90

160

M12

16

10

32

105.5

37

---

25

325

2700

14

HT 6

20.25

280

5

185.0

60

37.0

148

25

29.0

131.5

100

80

220

M12

18

12

37

122.0

35

25

25

420

3000

15

4 RR 60

23.20

280

5

185.0

60

37.0

150

25

29.0

134.0

100

80

220

M12

18

12

37

124.0

40

---

25

420

3000

16

HT 8

42.80

351

5

243.0

80

42.0

200

27

29.0

147.5

100

80

240

M12

24

14

47

163.0

47

25

32

500

3500

17

4 RR 80

48.00

355

5

247.0

80

42.0

200

27

29.0

147.5

100

80

240

M12

24

14

47

165.0

47

---

32

500

3500
